CHANGZHOU FEIFAN ENERGY TECHNOLOGY CO.,LTD
6 Years
| Ask Lasest Price | |
| Brand Name : | Neutral or OEM |
| Model Number : | LIR2430 |
| Certification : | CE ROHS MSDS REACH SGS |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000000Pcs Per Month |
| Delivery Time : | 15-20 work days |

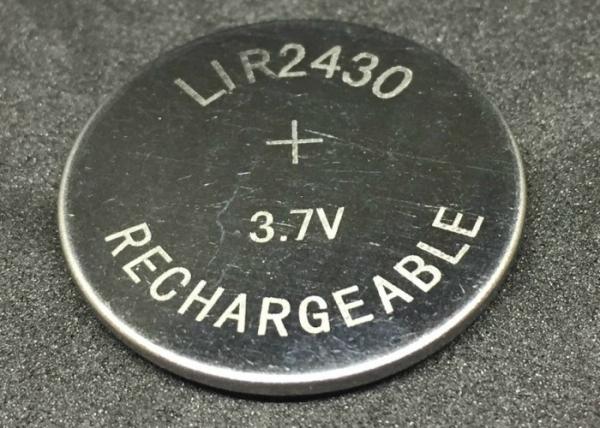

LIR2430 3.7V Li-ion Button Battery/3.6V Coin Cell Rechargeable 60mAh Smart wearable device
Description:
The 3.7V Li-ion Button Cell is a rechargeable battery, and used for
electric products and Car Key Automobile remote control key The
battery has a low power consumption and is energy-saving. With no
pollution, no infrared and no thermal radiation, It is also easy to
install, affordable, and a high quality Battery!
Applications:
Smart wearable device,Blood glucose meter,pet collar,Hand charger, clock, bluetooth wireless products, Laptop
computers,PDA, IC card, small memory, counter,Miniature instruments, medical instruments, electronic scales,
electronic dictionaries, various digital products backup power.
Specifications:
| Model number | LIR2025 | LIR1220 | LIR1620 | LIR1632 | LIR2016 | LIR2032 | LIR2032H | LIR2430 | LIR2440 | LIR2450 | LIR2450H | LIR3032 | |
| Nominal capacity | 30mAh | 7mAh | 15mAh | 25mAh | 15mAh | 45mAh | 70mAh | 60mAh | 90mAh | 120mAh | 200mAh | 110mAh | |
| Nominal Voltage | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | |
| Standard Discharge current | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | 0.2C | |
| Maximum Discharge current | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | |
| Overcharge protection voltage | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | 4.275V±0.025 | |
| Overdischarge protection voltage | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | 2.3V±0.05 | |
| Size | Φ20mm *2.5mm | Φ12.5mm *2.0mm | Φ16mm *2.0mm | Φ16mm *3.2mm | Φ20mm *1.6mm | Φ20mm *3.2mm | Φ20mm *3.2mm | Φ24.5mm *3.0mm | Φ24.5mm *4.0mm | Φ24.5mm *5.0mm | Φ24.5mm *5.0mm | Φ30mm *3.2mm | |
| Weight | 2.5g | 0.82g | 1.35g | 1.75g | 1.8g | 2.6g | 3.15g | 4.2g | 4.4g | 5.3g | 6.92g | 6.5g | |
| rechargeable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Competitive Advantage:
1. Excellent charge-discharge cycle characteristics, more than 500
cycles.
2. Stable and reliable work, longer service life.
3. Excellent safety performance.
4. Supports long - term constant pressure floating charge, no memory
effect.
5. Small size and high output power, can work normally at -20°C -
+60°C, low self-discharge rate.
6. The operating voltage is high (3.6v) and the output current is
relatively large.
Tag:rechargeable battery,Li-ion button cell,coin cell
|
|
