CHANGZHOU FEIFAN ENERGY TECHNOLOGY CO.,LTD
6 Years
| Ask Lasest Price | |
| Brand Name : | VAVTT or OEM |
| Model Number : | 23A 23AE 21/23 A23 23GA MN21 |
| Certification : | CE ROHS MSDS REACH SGS |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000000Pcs Per Month |
| Delivery Time : | 15-20 work days |
Description:

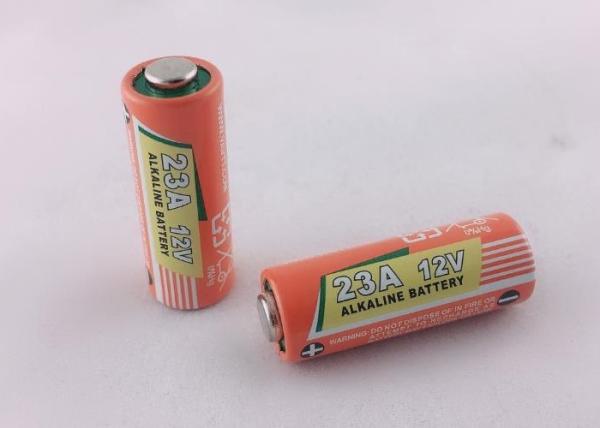

The 12V 23A Alkaline Battery has a low power consumption and is energy-saving. With no pollution, no infrared and no thermal radiation, It is also easy to install, affordable, and a high quality Battery.
Equivalent to: 23A, 23AE, A23, E23A, V23GA, MN21, GP23A, LRV08, 8F10R, 8LR23, 8LR932, CA20, K23A, L1028, MS21, RVO8 or VR22
Applications:
Doorbell, Car Alarm, Car Remote Control, Electric shock stop barking,Cosmetic pen, Camera,Remote control, Electronic toys,Computers,Game consoles,anti-bark collar,laser pointer, Alarm clock, Car Alarm Remote and other equipment.
Specifications:
| Nominal Voltage | 12V | ||
| Nominal Capacity (Continuous Discharging Under 10kΩ load to 6V End-Voltage at 20℃) | 50mAh | ||
| Operating temperature range | -20℃~70℃ | ||

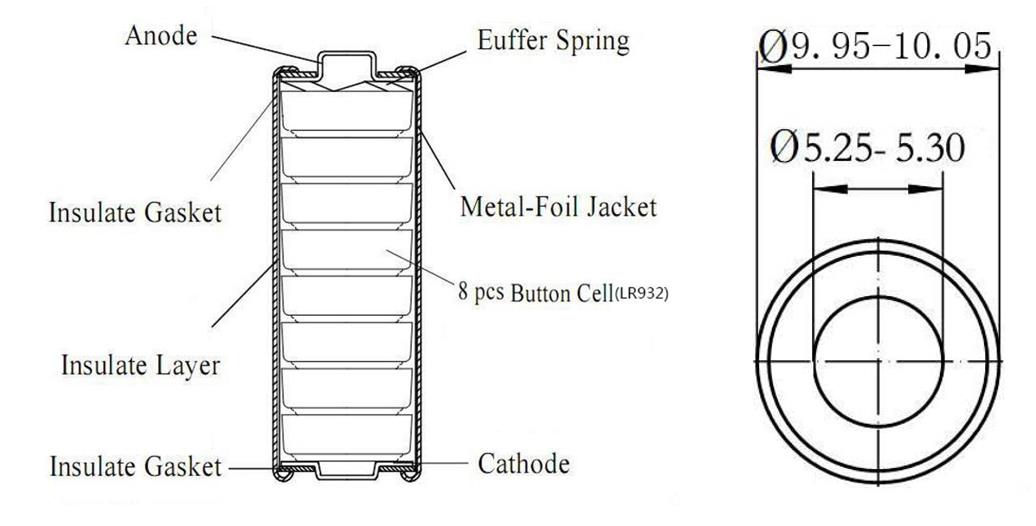

 | A(ref.) | 0.90~1.20 | |
| B | 27.90-28.10 | ||
| C | 9.95-10.05 | ||
| D(ref.) | 0.05 | ||
| Mass | Approx 8.06g | ||
| Open-circuit Voltage | 12V-12.3V | ||
| Appearance and poles | Appearance should be smooth, clear mark, no deformation, rust, and leakage | ||
| Minimum Average Discharge Time(10kΩ) | Initial test (New battery) | 52h | |
| After 12 months | 45h | ||
| Leakage Characteristics (Over discharge) | No Leakage | ||

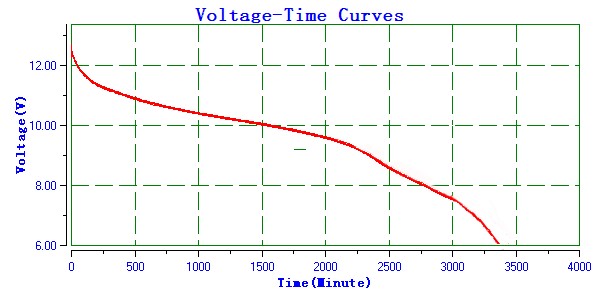

Discharge Curve:(Condition: Continuous Discharging Under 1kΩ load to 6V End-Voltage at 20℃)
Discharge Curve:(Condition: Continuous Discharging Under 10kΩ load to 6V End-Voltage at 20℃)
Competitive Advantage:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Tag:High Voltage battery,Alkaline battery
|
|
