9V 10A A22S L1022 52mAh Alkaline Battery Doorbells Flashlights Car Key Remotes Electronic Games
Description:
The 9V 10A Alkaline Battery is used to Car key Remotes, Doorbells, Flashlights and other .And it has a low power consumption and is energy-saving. With no pollution, no infrared and no thermal radiation, It is also easy to install, affordable, and a high quality Battery!
Equivalent to:10A, ALK10A, A10, A10BP, AG10, GP10A, K10A, E10A, WE10A, L1022, MN10, MS10
Applications:
Car key Remotes, Doorbells, Flashlights ,electric shock stop barking,beauty pen,AE1 camera,remote control,electronic scales,electronic toys,computers,game consoles,anti-bark collar,laser pointer and an alarm clock, Dog Training Shock Collar Cameras, Car Alarm Remote and other equipment.
Specifications:
| Nominal Voltage | 9V | ||
| Nominal Capacity (Continuous Discharging Under 1kΩ load to 6V End-Voltage at 20℃) | 52mAh | ||
| Operating temperature range | -20℃~60℃ | ||

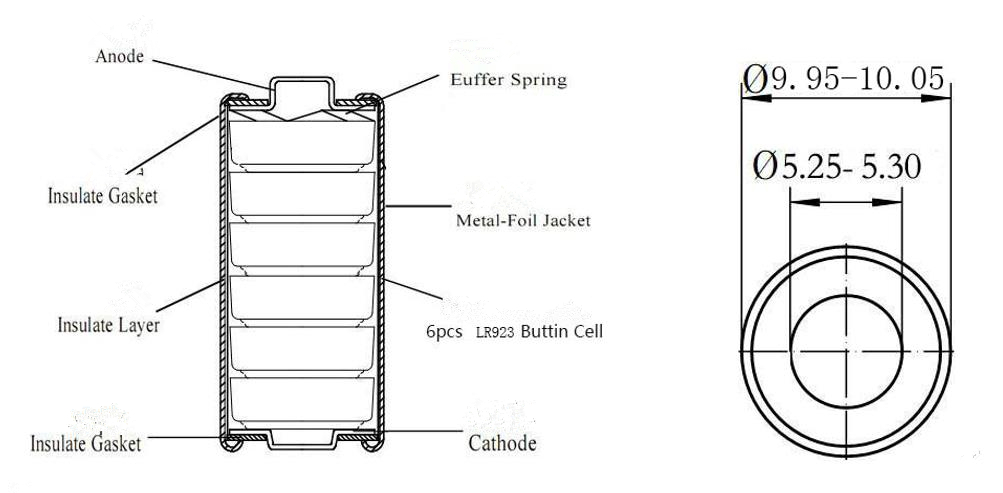

 | A(ref.) | 1.10～0.05 | |
| B | 21.70±0.25 | ||
| C | 10.00±0.05 | ||
| D(ref.) | 0.05 | ||
| Mass | Approx 6.4g | ||
| Open-circuit Voltage | 9.5V | ||
| Appearance and poles | Appearance should be smooth, clear mark, no deformation, rust, and leakage | ||
| Minimum Average Discharge Time(1kΩ) | Initial test (New battery) | 370mins | |
| After 12 months | 350mins | ||
| Leakage Characteristics (Over discharge) | No Leakage | ||

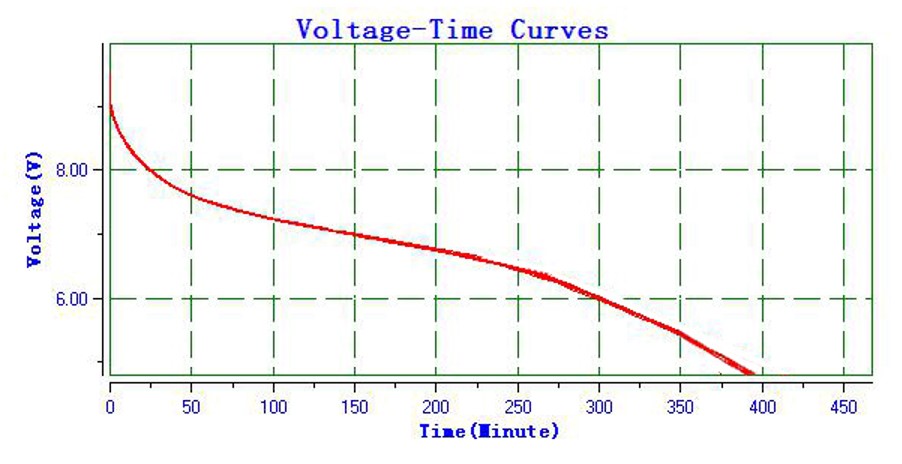

Discharge Curve:(Condition: Continuous Discharging Under 1kΩ load to 6V End-Voltage at 20℃)
Discharge Curve:(Condition: Continuous Discharging Under 10kΩ load to 6V End-Voltage at 20℃)
Competitive Advantage:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Tag:High Voltage battery,Alkaline battery
|
|
