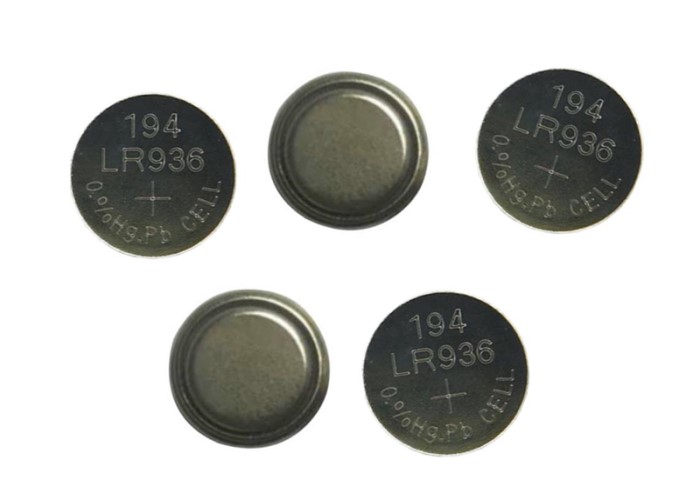

1.5V AG9 LR936 SR936SW 394 LR45 194 Alkaline Batteries Button Coin Cells Watch battery digital calipers
Description:
Coin cell batteries are thin, circular batteries often used to power hearing aids, wristwatches, key fobs, digital calipers and test instruments, and small flashlights. Commonly called button batteries or watch batteries, they have a low self-discharge to hold their charge for a long shelf and service life. These batteries can be discarded when their charge runs out.
Applications:
calculators, clocks, watches, computers, camcorders, remote controls, electronic instruments, digital voice recorders, blood glucose meters, cholesterol testing meters, LED lights and others
Specifications:
| Nominal Voltage | 1.5V | ||
| Nominal Capacity (Continuous Discharging Under 15kΩ load to 0.9V End-Voltage at 20℃) | 53mAh | ||
| Operating temperature range | -20℃~70℃ | ||
 | diameter(A) | 9.5(±0.05)mm | |
height (B) | 3.6(-0.4)mm | ||
| Mass | Approx 0.79g | ||
| Open-circuit Voltage | 1.5V | ||
| Appearance and poles | Appearance should be smooth, clear mark, no deformation, rust, and leakage | ||
| Minimum Average Discharge Time(15kΩ) | Initial test (New battery) | 620h | |
| After 12 months | 560h | ||
| Leakage Characteristics (Over discharge) | No Leakage | ||
(Condition: Continuous Discharging Under 15kΩ load to 0.9V End-Voltage at 20℃)
| Model # | Cross Reference | Nominal Voltage (V) | Capacity (mAh) | Dimension (mm) [Dia. x Height] |
| AG0 | L521 | 1.5V | 9 | 5.75 x 2.2 |
| AG1 | L621 364 | 1.5V | 13 | 6.8 x 2.1 |
| AG2 | L726 397 | 1.5V | 23 | 7.9 x 2.6 |
| AG3 | LR41 L736 392 | 1.5V | 40 | 7.9 x 3.6 |
| AG4 | LR66 L626 377 | 1.5V | 18 | 6.8 x 2.6 |
| AG5 | L754 393 | 1.5V | 60 | 7.9 x 5.4 |
| AG6 | LR69 L921 371 | 1.5V | 27 | 9.5 x 2.1 |
| AG7 | L926/L927 395 | 1.5V | 42 | 9.5 x 2.7 |
| AG8 | LR1120 L1121 391 | 1.5V | 43 | 11.6 x 2.1 |
| AG9 | L936 394 | 1.5V | 53 | 9.5 x 3.6 |
| AG10 | LR1130 L1131 389 | 1.5V | 83 | 11.6 x 3.1 |
| AG11 | L721 362 | 1.5V | 17 | 7.9 x 2.1 |
| AG12 | LR43 L1142 886 | 1.5V | 100 | 11.6 x 4.2 |
| AG13 | LR44 L1154 357 | 1.5V | 170 | 11.6 x 5.4 |
Competitive Advantage:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Tag:Alkaline button battery,coin cell,watch battery
|
|
