CHANGZHOU FEIFAN ENERGY TECHNOLOGY CO.,LTD
6 Years
| Ask Lasest Price | |
| Brand Name : | Neutral or OEM |
| Model Number : | CR2320 with solder tabs |
| Certification : | CE ROHS MSDS REACH SGS |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 15-20days |

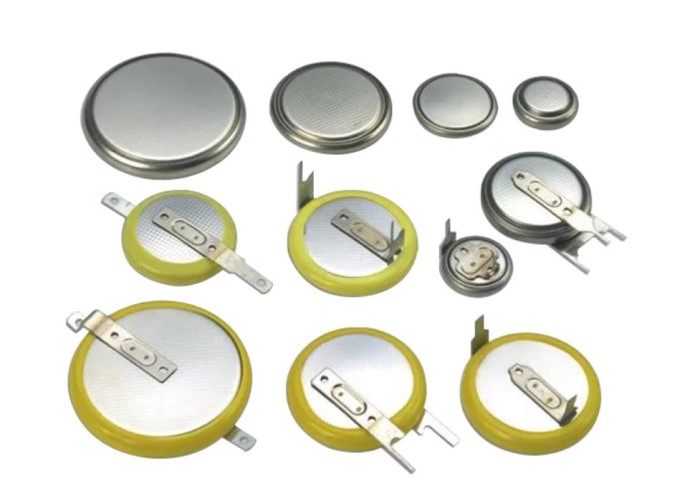

Coin cell batteries are thin, circular batteries often used to power hearing aids, wristwatches, key fobs, digital calipers and test instruments, and small flashlights. Commonly called button batteries or watch batteries, they have a low self-discharge to hold their charge for a long shelf and service life. These batteries can be discarded when their charge runs out.
Applications:
music cards, calculators, electronic watches and clocks, toys, electronic gifts, medical equipment, LED flash, card reader, small appliances, alarm system, , electronic dictionary , digital electronics, IT,etc.
Specifications:
| Electrochemical System | Lithium manganese dioxide/organic electrolytes | ||
| Nominal Voltage | 3V | ||
| Nominal Capacity (Continuous Discharging Under 15kΩ load to 2.0V End-Voltage at 20℃) | 130mAh | ||
| Operating temperature range | -20℃~70℃ | ||
 | diameter(A) | 23(-0.3)mm | |
height (B) | 2.0(-0.3)mm | ||
| Mass | Approx 2.9g | ||
| Open-circuit Voltage | 3.10V-3.45V | ||
| Short-circuit Current | ≥300mA | ||
| Appearance and poles | Appearance should be smooth, clear mark, no deformation, rust, and leakage | ||
| Minimum Average Discharge Time(15kΩ) | Initial test (New battery) | 800h | |
| After 12 months | 750h | ||
| Leakage Characteristics (Over discharge) | No Leakage | ||
Competitive Advantage:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Tag:Coin Cell With Solder Tabs
|
|
